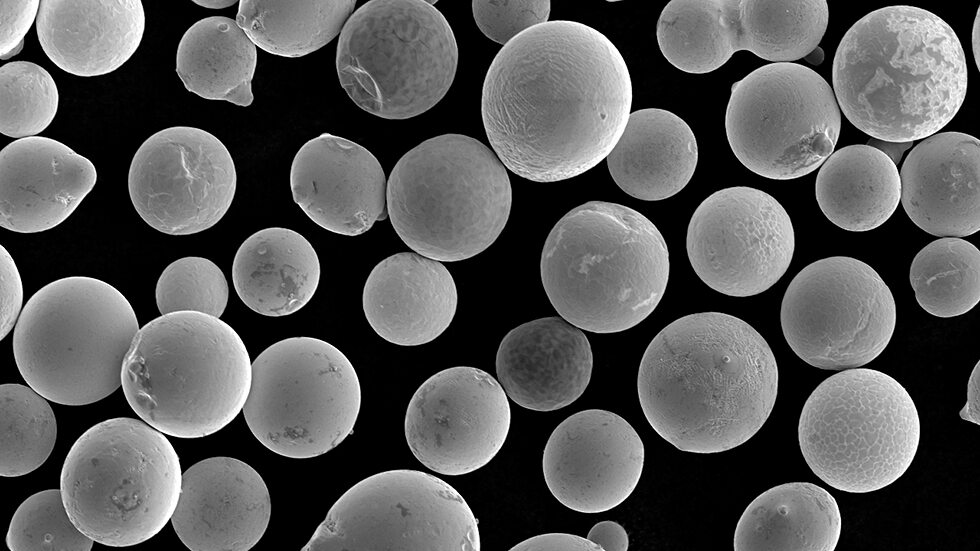

Metco 51059A is a blend of spherical cast tungsten carbide (CTC-S) in a NiCrBSi matrix. It is designed for laser cladding. Deposits have a matrix hardness of approximately 50 HRC that provides very good abrasion and erosion resistance with fair impact resistance. The CTC-S hardphase results in a fine non-acicular structure with superior hardness versus fused and crushed tungsten carbide. The high apparent density and improved flow raise the amount of hardphase present in the clad deposit.
Characteristics
| Material type | Welding/Cladding Powder |
|---|---|
| Product form | Powder |
| Material safety datasheet number | 50-1245 |
| Predesessor material |
PlasmaDur 53003 |
| Previous name | Woka 53003; Woka 6050S |
| Achieved surface function primary |
Abrasion Protection Solid Particle Erosion Protection Erosion Protection in Gas Flow Sliding Wear Protection Adhesive Wear Protection Erosion Protection in Liquid Flow |
| Suitable for service environmen |
Moderate Atmosphere Dust Gravel/Stone/Rock/Concrete Contact Soil//Sand/Silt/Clay Contact |
| Base composition | Tungsten |
| Nominal chemistry | WC 40(NiCrSiBC) |
| Max. service temp. | 500 |
| Achieved microhardness (min) | 50HRC |
| Achieved macrohardness (max) | 55HRC |
| Hard phase portion | 60% |
| Recommended process technology |
Laser Cladding Plasma Transferred Arc |
| Datasheet number | DSM-0233 |
