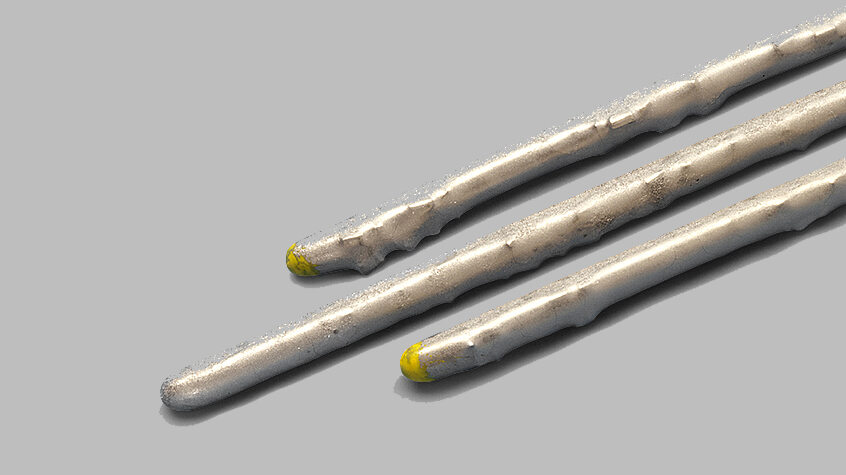

WokaDur SA 100-Ni is sintered welding rod that consists of coarse-grained, sintered tungsten carbide and a self-fluxing, nickel alloy binder matrix. It is designed to be applied using oxy-acetylene welding and produces deposits that protect surfaes from extreme sliding wear and abrasion on nearly all types of steel and cast-iron substrates.
Characteristics
| Material type | Rod/Electrode Material |
|---|---|
| Product form | Rod/Electrode |
| Material safety datasheet number | 50-1092 |
| Achieved surface function primary |
Abrasion Protection Erosion Protection in Liquid Flow Solid Particle Erosion Protection |
| Suitable for service environmen |
Moderate Atmosphere Dust Gravel/Stone/Rock/Concrete Contact Soil//Sand/Silt/Clay Contact |
| Base composition | Tungsten |
| Nominal chemistry | W 38Ni 5Cr 3Co 3C 1.5Fe 1.5Si |
| Max. service temp. | 500 |
| Hard phase portion | 53% |
| Achieved weld density | 11.7 |
| Recommended process technology |
Oxy-Acetylene Welding |
| Datasheet number | DSM-0350 |
