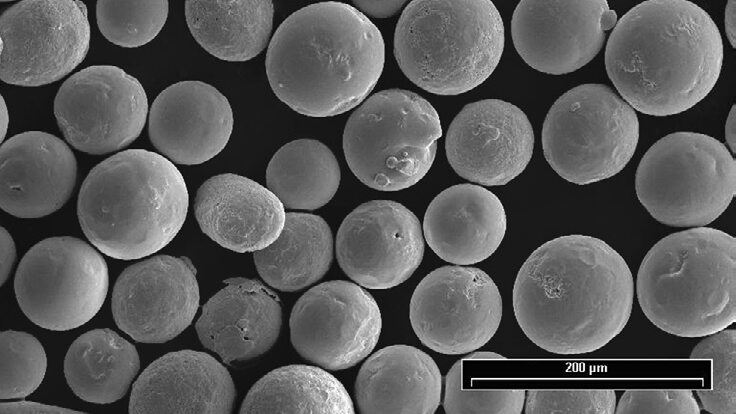

Amdry 795A is a nickel-based braze filler metal that produces very high strength joints — particularly burst strength — and excellent corrosion resistance. It can be used to join most types of steels, including stainless steels, as well as nickel- and cobalt-based superalloys. Brazing in a vacuum or dry hydrogen atmosphere is recommended. It is free-flowing, making it appropriate for thin gaps. It is available as a powder. Braze paste and customized tape is available on request.
Characteristics
| Material type | Brazing Powder |
|---|---|
| Product form | Powder |
| Material safety datasheet number | 50-2154 |
| Achieved surface function primary |
Dimensional Restoration |
| Suitable for service environmen |
Combustion/Flue Gas |
| Recommanded brazing range (min) | 1080 |
| Recommanded brazing range (max) | 1100 |
| Brazing gap size range (min) | 0.01 |
| Brazing gap size range (max) | 0.1 |
| Liquidus temp. | 1030 |
| Solidus temp. | 985 |
| Base composition | Nickel |
| Nominal chemistry | Ni 29Cr 6P 4Si |
| Recommended process technology |
Brazing |
| Datasheet number | DSM-0219 |
