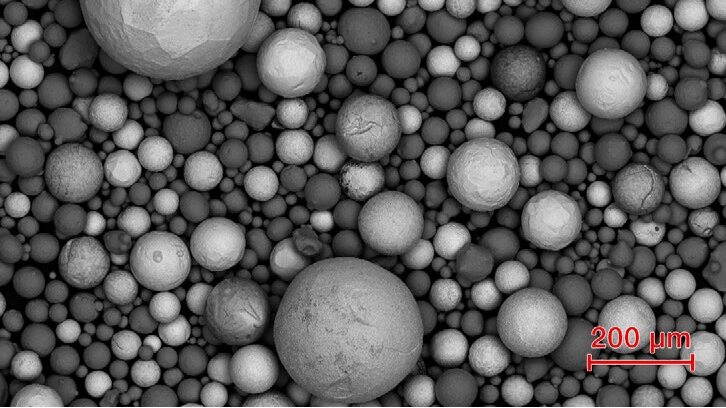

Metco 51019A is a blend of spherical cast tungsten carbide and nickel-chromium-boron-silicon matrix. It can be applied using PTA or spray and fuse welding. The matrix provides a balance of hardness and ductility with a low propensity for cracking. Deposits on tooling for oil and gas and other markets can see as much as a 300% life improvement compared to conventional tungsten carbide surfaces. It protects against erosive fluids and 2- and 3-body abrasion on drill bits.
Characteristics
| Material type | Welding/Cladding Powder |
|---|---|
| Product form | Powder |
| Previous name | DiaClad Enduro Elite |
| Achieved surface function primary |
Abrasion Protection Adhesive Wear Protection Erosion Protection in Gas Flow Erosion Protection in Liquid Flow Sliding Wear Protection Solid Particle Erosion Protection Dimensional Restoration |
| Suitable for service environmen |
Acidic Liquid, Not Specified Crude Oil Dust Engine Oil Gravel/Stone/Rock/Concrete Contact Metal Contact Soil//Sand/Silt/Clay Contact Seawater/Brackish Water Plastic/Rubber/Polymer Contact Corrosive Mud Corrosive Liquid |
| Base composition | Tungsten |
| Nominal chemistry | WC/W2C NiCrBSi |
| Achieved microhardness (min) | 50HRC |
| Hard phase portion | 50% |
| Possible spray gun competitor |
SuperJet-S-Eutalloy |
| Recommended process technology |
Gas Tungsten Arc Welding Oxy-Acetylene Welding Plasma Transferred Arc |
| Datasheet number | DSM-0294 |
