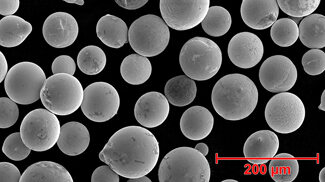

Metco 51060A is a powder blend of spherical cast tungsten carbide (CTC-S) and a NiCrBSiFe matrix. It is designed for laser cladding and can be chosen when high hardness, resistance to slurry erosion and good impact resistance is needed. The CTC-S hardphase results in a fine non-acicular structure with superior hardness compared to conventional fused and crushed tungsten carbide. The high apparent density and improved flow raise the amount of hardphase present in the clad deposit.
Characteristics
| Material type | Welding/Cladding Powder |
|---|---|
| Product form | Powder |
| Material safety datasheet number | 50-1521 |
| Achieved surface function primary |
Abrasion Protection Solid Particle Erosion Protection Erosion Protection in Gas Flow Sliding Wear Protection Adhesive Wear Protection Erosion Protection in Liquid Flow |
| Suitable for service environmen |
Moderate Atmosphere Dust Engine Oil Fresh Water Soil//Sand/Silt/Clay Contact Seawater/Brackish Water Saline Atmosphere Acidic Liquid, Not Specified Arid Atmosphere |
| Melting temp. | 1100 |
| Base composition | Tungsten |
| Nominal chemistry | WC 40(NiCrSiBC) |
| Max. service temp. | 500 |
| Achieved microhardness (min) | 37HRC |
| Achieved macrohardness (max) | 44HRC |
| Hard phase portion | 60% |
| Recommended process technology |
Laser Cladding Plasma Transferred Arc |
| Datasheet number | DSM-0233 |
