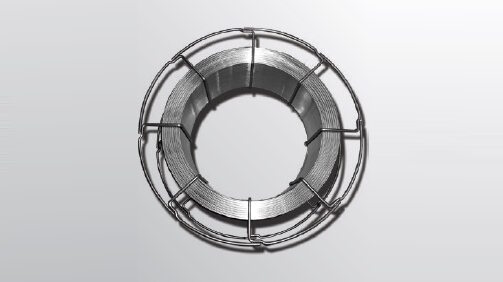

Metco 8100 is a wire product with a composition similar to Stellite 1. It is designed to be applied using arc welding processes such as GMAW and GTAW. Choose Metco 8100 when severe abrasion resistance or low-angle erosion resistance is required combined with good corrosion resistance. It maintains its hardness at temperatures up to 760 °C (1400 °F) in abrasion or erosion applications. It works well in saltwater but is not the best choice for pitting or crevice corrosion.
Characteristics
| Material type | Wire Material |
|---|---|
| Product form | Wire |
| Material safety datasheet number | 50-2529 |
| Predesessor material |
OSU 3560 |
| Achieved surface function primary |
Abrasion Protection Erosion Protection in Gas Flow |
| Achieved surface function secondary |
Corrosion Resistance |
| Suitable for service environmen |
Saline Atmosphere |
| Liquidus temp. | 1345 |
| Liquidus temp. tolerance | 10 |
| Solidus temp. | 1190 |
| Solidus temp. tolerance | 10 |
| Base composition | Cobalt |
| Nominal chemistry | Co 27.5Cr 11W 1Fe 1.4Mn 2.4C 0.6Si |
| Max. service temp. | 760 |
| Recomm metco spray gun |
LD/U LD/U2 PPG |
| Recommended process technology |
Gas Metal Arc Welding Gas Tungsten Arc Welding |
| Datasheet number | DSM-0218 |
