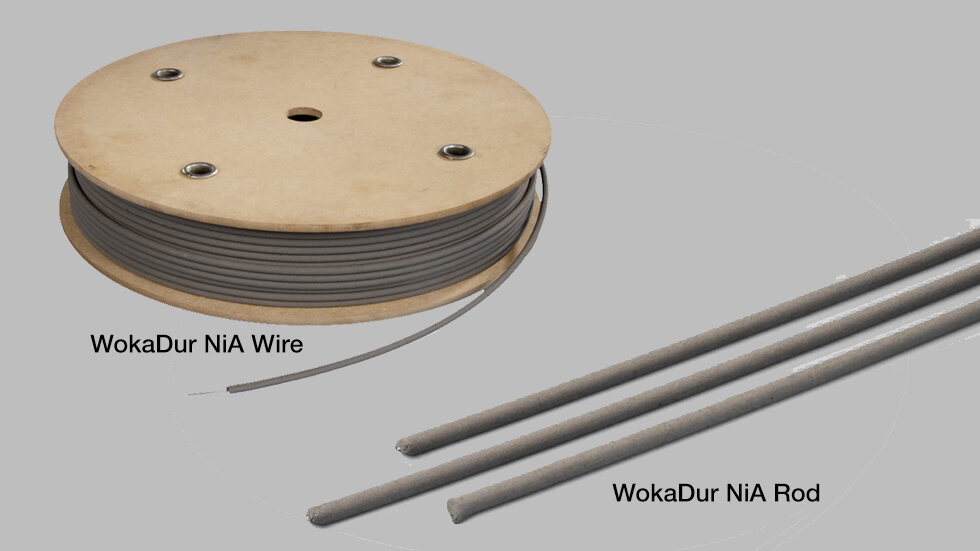

WokaDur NiA is nickel wire coated with cast tungsten carbide (CTC) and a nickel-alloy matrix. It is designed for application using oxy-acetylene welding with excellent flow and wetting. It can be used for hardfacing or buildup on all types of steel substrates but is not recommended for use on manganese steel or cast iron. The carbide hardness ranges from 2000 to 2300 HV0.1. Use for applications in markets such as oil and gas, food and chemical processing, brick manufacturing.
Characteristics
Material type | Rod/Electrode Material |
---|---|
Product form | Rod/Electrode |
Material safety datasheet number | 50-1082 |
Previous name | Durit NiA Plus |
Achieved surface function primary |
Abrasion Protection Erosion Protection in Liquid Flow Solid Particle Erosion Protection |
Suitable for service environmen |
Moderate Atmosphere Dust Gravel/Stone/Rock/Concrete Contact Soil//Sand/Silt/Clay Contact |
Base composition | Tungsten |
Nominal chemistry | W 30Ni 2.7C 2.5Cr |
Max. service temp. | 500 |
Achieved microhardness (min) | 58HRC |
Achieved macrohardness (max) | 65HRC |
Hard phase portion | 65% |
Achieved weld density | 12.9 |
Recommended process technology |
Oxy-Acetylene Welding |
Datasheet number | DSM-0282 |
