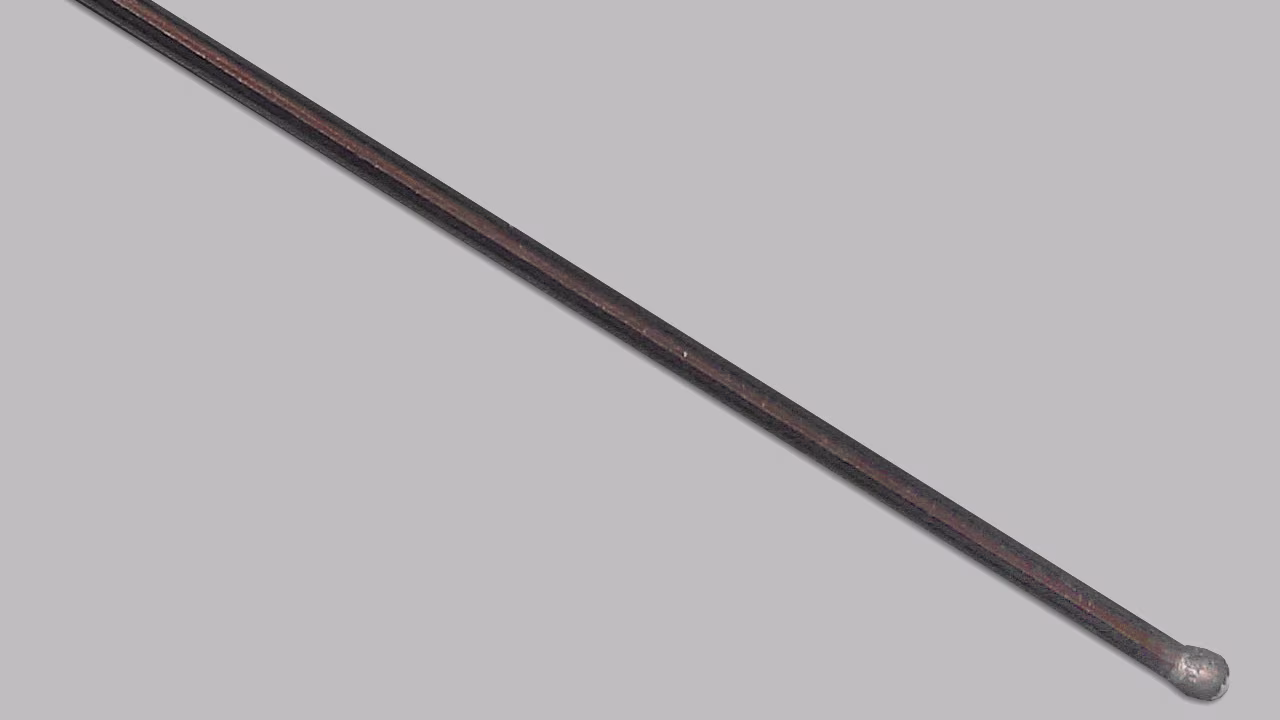

WokaDur NiA-Tube is pure nickel tubular welding rod filled with blocky, cast and crushed tungsten carbide (CTC). It is designed for application using Gas Tungsten Arc Welding on ferritic and austenitic steel substrates, as well as cast steels with a maximum carbon content of 0.5%. The carbide hardness ranges from 1900 to 2300 HV0.1. It is an excellent choice when exceptional wear resistance combined with corrosion protection is desirable. WokaDur NiA-Tube meets DIN EN 14700: T Ni20.
Characteristics
Material type | Rod/Electrode Material |
---|---|
Product form | Rod/Electrode |
Material safety datasheet number | 50-1081 |
Achieved surface function primary |
Abrasion Protection Erosion Protection in Liquid Flow Solid Particle Erosion Protection |
Suitable for service environmen |
Moderate Atmosphere Dust Gravel/Stone/Rock/Concrete Contact Soil//Sand/Silt/Clay Contact |
Base composition | Tungsten |
Nominal chemistry | W 37Ni 5.2Cr 2.9C 1.5Si 1.2B |
Max. service temp. | 500 |
Achieved microhardness (min) | 54HRC |
Achieved macrohardness (max) | 65HRC |
Hard phase portion | 65% |
Achieved weld density | 12.5 |
Recommended process technology |
Gas Tungsten Arc Welding |
Datasheet number | DSM-0351 |
