WokaDur NiE-TM

WokaDur NiE-TM

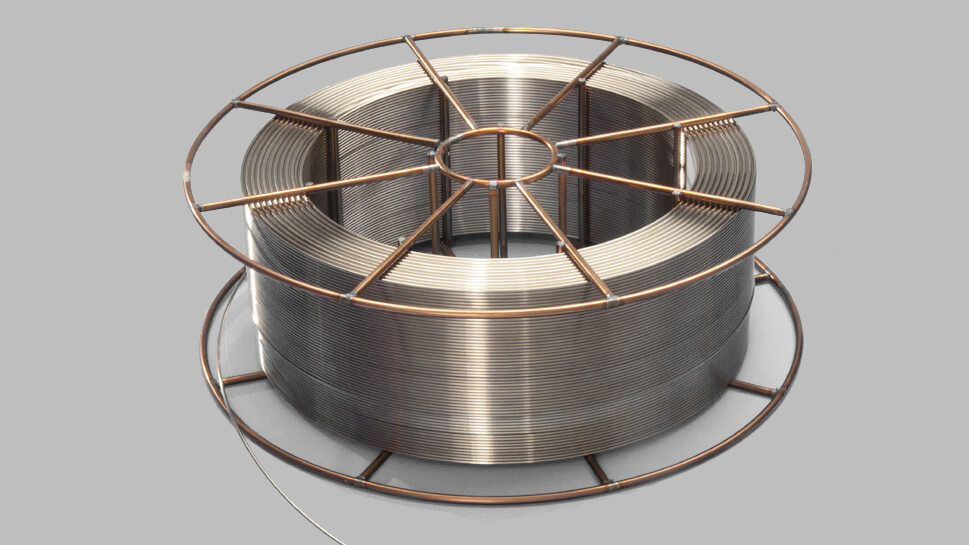

WokaDur NiE-TM is a pure nickel tubular wire with high melting temperature macrocrystalline tungsten carbide (MTC) of intermediate hardness designed to be applied via GMAW. Deposits are extremely resistant to abrasive and erosive particles, while remaining very ductile. Deposits are crack-free with very uniform carbide distribution that exhibit outstanding wear resistance WokaDur NiE-TM is compatible with mild and low carbon steel substrates with a carbon content ≤ 05%.

Characteristics

Material type Wire Material
Product form Wire
Material safety datasheet number 50-1085
Achieved surface function primary Abrasion Protection
Erosion Protection in Liquid Flow
Solid Particle Erosion Protection
Suitable for service environmen Moderate Atmosphere
Dust
Gravel/Stone/Rock/Concrete Contact
Soil//Sand/Silt/Clay Contact
Base composition Tungsten
Nominal chemistry W 45Ni 3.5C 1.8B
Max. service temp. 500
Achieved microhardness 2000%
Achieved microhardness (min) 50HRC
Achieved weld density 12.2
Recommended process technology Gas Metal Arc Welding
Datasheet number DSM-0325

Relevant articles

Article Number Product Size Packaging size
1063645 WokaDur NiE-TM 15.0 kg Inquire / Contact Us
1063647 WokaDur NiE-TM 25.0 kg Inquire / Contact Us
1065236 WokaDur NiE-TM 15.0 kg Inquire / Contact Us
