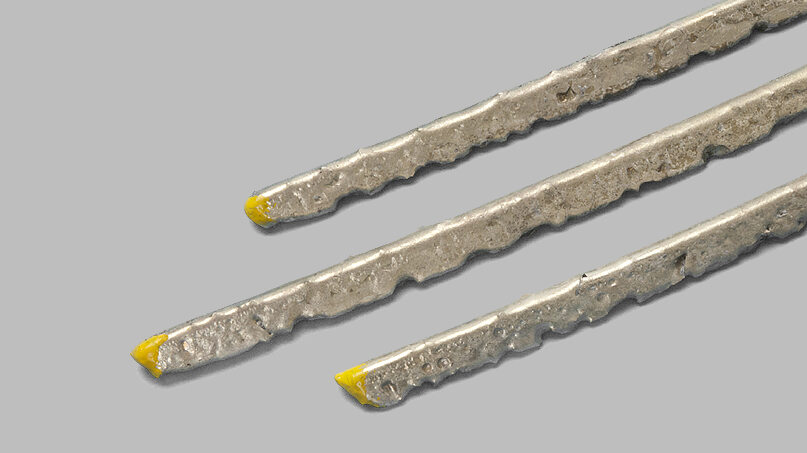

WokaDur SA 100 is sintered welding rod that consists of coarse-grained, sintered tungsten carbide and a ductile “nickel-silver” (CuNiZn) alloy matrix designed for application using oxy-acetylene welding. It can be used on nearly all types of steel and cast-iron substrates. Deposits protect surfaces from extreme sliding wear where impact is of concern. It is particularly suitable for deep drilling equipment.
Characteristics
| Material type | Rod/Electrode Material |
|---|---|
| Product form | Rod/Electrode |
| Material safety datasheet number | 50-1091 |
| Achieved surface function primary |
Abrasion Protection Erosion Protection in Liquid Flow Solid Particle Erosion Protection |
| Suitable for service environmen |
Moderate Atmosphere Dust Gravel/Stone/Rock/Concrete Contact Soil//Sand/Silt/Clay Contact |
| Base composition | Tungsten |
| Nominal chemistry | W 20Cu 16Zn 4Ni 3Co 3C |
| Max. service temp. | 500 |
| Hard phase portion | 60% |
| Achieved weld density | 12.2 |
| Recommended process technology |
Oxy-Acetylene Welding |
| Datasheet number | DSM-0349 |
